Double Rod Panel Fence

A Solution That Brings Together Security and Aesthetics with Double Rod Panel Fence

Panel Fence systems are an ideal perimeter solution for many areas with their durability, long service life, and aesthetic appearance. Thanks to high-strength galvanized wire and the electrostatic powder coating technique, they provide superior resistance to external factors.

Offering a wide range of applications from industrial zones to parks, from parking lots to areas requiring high security, the Panel Fence ensures visual harmony while securing your surroundings. It creates a difference in your projects with various color and size options.

Technical Specifications

Product

Panel Fence

Product Standard

TS EN 10223-4

Raw Material Standard

TS EN 10244-2

Material Used

Galvanized Wire / Nano-Coated Wire

Painting Method

Electrostatic Powder Coating

Wire Diameter

3.5mm (±0.10mm) - 5.00mm (±0.10mm)

Mesh Size

Model	Mesh Size
X5	53mm x 50mm, 53mm x 100mm, 53mm x 150mm, 53mm x 200mm
X5-i	56mm x 50mm, 56mm x 100mm, 56mm x 150mm, 56mm x 200mm
X6	61mm x 50mm, 61mm x 100mm, 61mm x 150mm, 61mm x 200mm
X6-i	66mm x 50mm, 66mm x 100mm, 66mm x 150mm, 66mm x 200mm

Height

50cm - 70cm - 100cm - 120cm - 150cm - 200cm

Form

Double Rod

Length

200cm - 250cm

Profile Post

50mm x 50mm x 1.5mm - 60mm x 60mm x 1.5mm

Profile Post Type

Nano-Coated Profile - Galvanized Profile with Electrostatic Powder Coating (Optional)

Connection Accessories

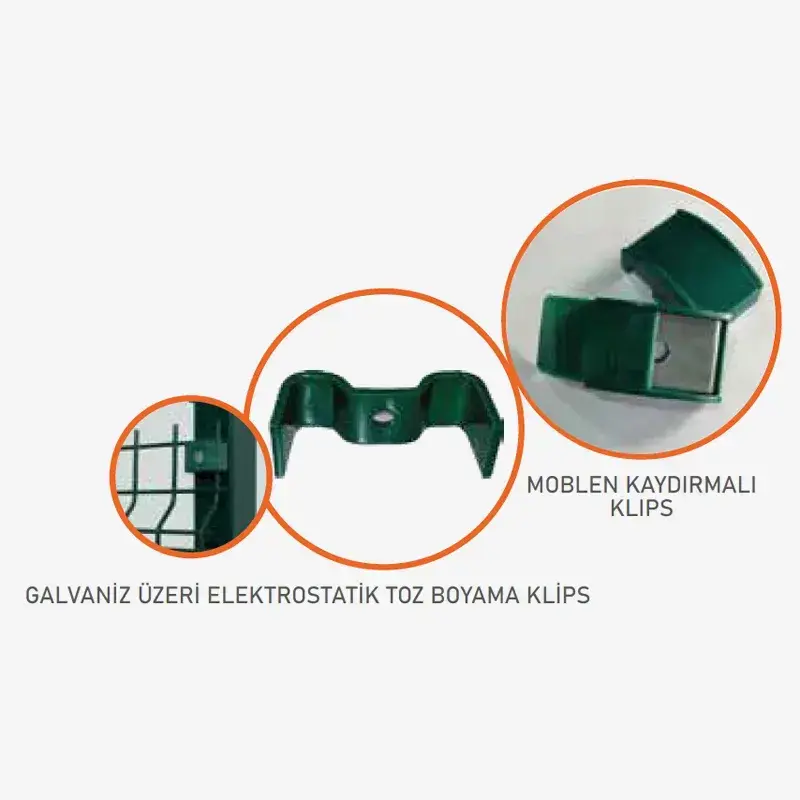

360° Rotatable UV-Resistant Polymer Clamp, Cap, Steel Anchor, Metal Clip

Color

Can be manufactured in desired colors

General Features

Long-lasting with a durable structure and requires no maintenance.
Provides high strength against external factors.
Suitable for use in various areas with its aesthetic appearance and security features.

Areas of Use

Industrial Zones
Highways and Parking Lots
Metro and Railway Areas
Parks and Gardens
Areas Requiring High Security
