High Security Panel

High Security Panel
High Security Panel - 1
High Security Panel - 2
High Security Panel - 3

High Security Panel

Maximum Security and Structural Strength

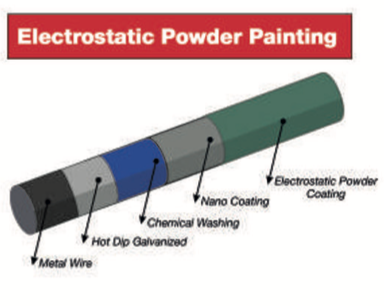

High Security Panel Fence systems are designed to provide maximum protection in
high-risk and restricted areas. Manufactured from high-strength galvanized wire
and coated with powder coating, they ensure long-lasting performance and resistance
to harsh environmental conditions.

Technical Specifications

Material Standards Height (mm) Width (mm) Wire Diameter (mm) Hole / Mesh Size (mm) Colour Coating
TSE-EN 10218-2 2000 2500 4.00 ± 5% 12.7 x 76.2 RAL 7016 & RAL 6005
(Can be painted in desired RAL colour)		 Galvanized Pole
Powder Coating
TS EN 10244-2 D Class 2500 2500 4.00 ± 5% 12.7 x 76.2 RAL 7016 & RAL 6005
(Can be painted in desired RAL colour)		 Galvanized Pole
Powder Coating
400–650 N/mm² 3000 2500 4.00 ± 5% 12.7 x 76.2 RAL 7016 & RAL 6005
(Can be painted in desired RAL colour)		 Galvanized Pole
Powder Coating
