Single Rod Panel Fence

Single Rod Panel Fence: A Solution That Combines Security and Aesthetics

**Panel Fence systems** are an ideal fencing solution for many areas with their durability, long service life, and aesthetic appearance. Thanks to high-strength galvanized wire and electrostatic powder coating technology, they offer superior resistance to external factors.

Providing a wide range of applications from industrial zones to parks, and from parking areas to high-security locations, Panel Fence ensures visual harmony while securing your surroundings. It makes a difference in your projects with various color and size options.

Technical Specifications

Product

Panel Fence

Product Standard

TS EN 10223-4

Raw Material Standard

TS EN 10244-2

Material Used

Galvanized Wire / Nano-Coated Wire

Painting Method

Electrostatic Powder Coating

Wire Diameter

3.5mm (±0.10mm) - 5.00mm (±0.10mm)

Mesh Size

Model	Mesh Size
X5	53mm x 50mm, 53mm x 100mm, 53mm x 150mm, 53mm x 200mm
X5-i	56mm x 50mm, 56mm x 100mm, 56mm x 150mm, 56mm x 200mm
X6	61mm x 50mm, 61mm x 100mm, 61mm x 150mm, 61mm x 200mm
X6-i	66mm x 50mm, 66mm x 100mm, 66mm x 150mm, 66mm x 200mm

Height

50cm - 70cm - 100cm - 120cm - 150cm - 200cm

Design

Single Rod

Length

200cm - 250cm

Post Profile

50mm x 50mm x 1.5mm - 60mm x 60mm x 1.5mm

Post Type

Nano Coated Profile - Galvanized Profile with Electrostatic Powder Coating (Optional)

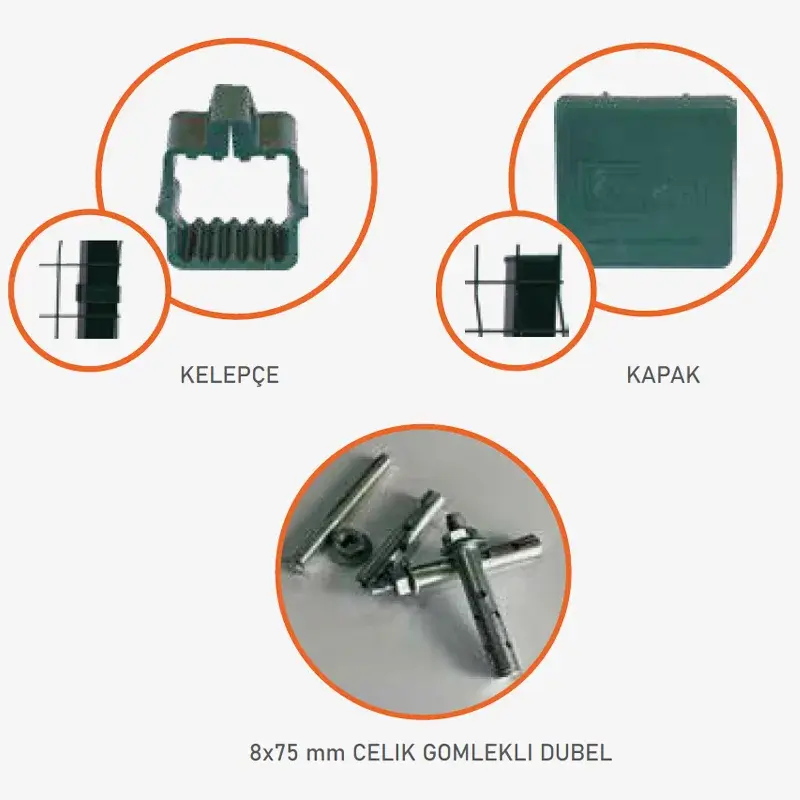

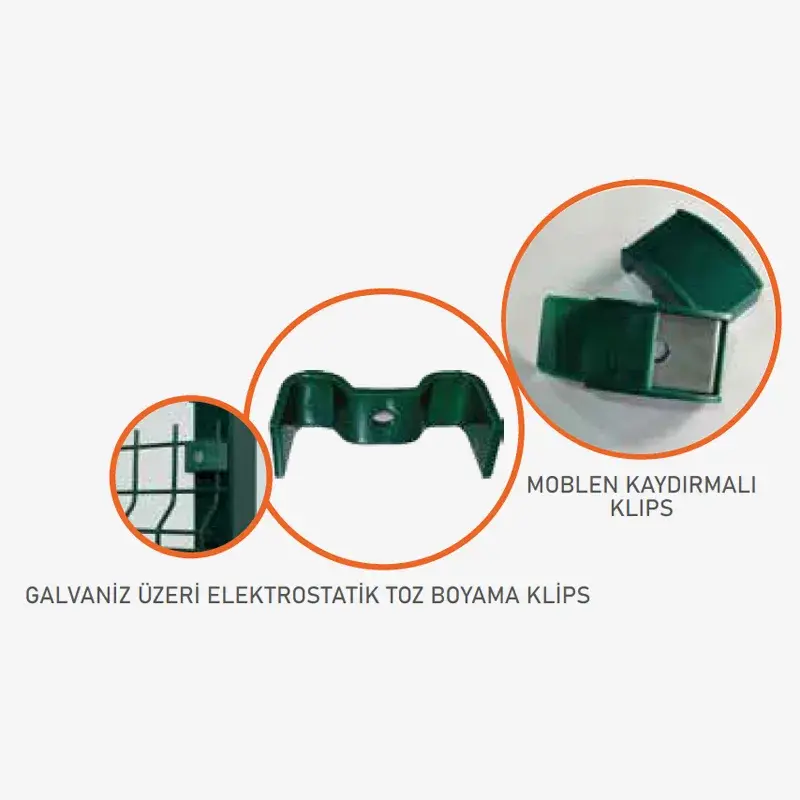

Connection Accessories

360° Rotatable UV-Resistant Polymer Clamp, Cap, Steel Anchor, Metal Clip

Color

Available in Desired Colors

General Features

Durable structure provides long service life and requires no maintenance.
High resistance against external factors.
Suitable for various applications with its aesthetic appearance and security features.

Areas of Use

Industrial Zones
Highways and Parking Areas
Metro and Railway Areas
Parks and Gardens
High-Security Areas
