Roof & Wall Panels Insulated - Single Sheet - Double Sheet
Roof & Wall Panels Insulated - Single Sheet - Double Sheet - 1
Roof & Wall Panels Insulated - Single Sheet - Double Sheet - 2
Roof & Wall Panels Insulated - Single Sheet - Double Sheet - 3
Roof & Wall Panels Insulated - Single Sheet - Double Sheet - 4
Roof & Wall Panels Insulated - Single Sheet - Double Sheet - 5

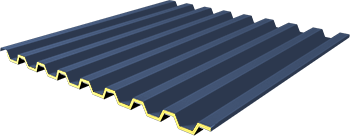

Roof & Wall Panels Insulated - Single Sheet - Double Sheet

High Performance Sound, Thermal, and Water Insulation

It has a rigid polyurethane foam core. It is CFC-free and has a weight of approximately 40kg / m³. Due to its high-efficiency profile geometry and a 10 mm thick polyurethane foam layer bonded to the upper shell, our product has extremely high stability.

Application areas are for roofs with photovoltaic systems, new buildings, renovation works, and all types of agricultural or industrial buildings.

Technical Specifications

Specifications Value
Exterior Profile Form 9-Ribbed Sheet Metal
Sheet – Metal Type Prepainted Galvanized Steel
Sheet Thickness 0.20 mm – 0.30 mm – 0.40 mm – 0.50 mm
Length Options 4.00 lm – 12.50 lm
Effective Width 0.87 m
Insulation Layer Polyurethane
Insulation Thickness 10 mm
Interior Surface White Polyethylene Film
